상품명(모델명) : 외부 트리거(synchra 200)
동기화 신호 장치 시스템
일정 크기의 TTL 신호 ( + 5V)를 원하는 시간에 출력하여, 둘 이상의
독립된 장비를 시간적으로 동기화 시켜주는 장치 (출력장비)
영상장비 이용 시, 촬영된 영상 데이터 속에, 램프의 불빛으로
시간을 동기화시킨다.
[골프 스윙시 근 활성량과 동작분석]
[보폭에 따른 근 활성량과 동작 분석]
주요 연결 장비 : 다트 피쉬, 동작분석기, 지면 반력기
외부트리거

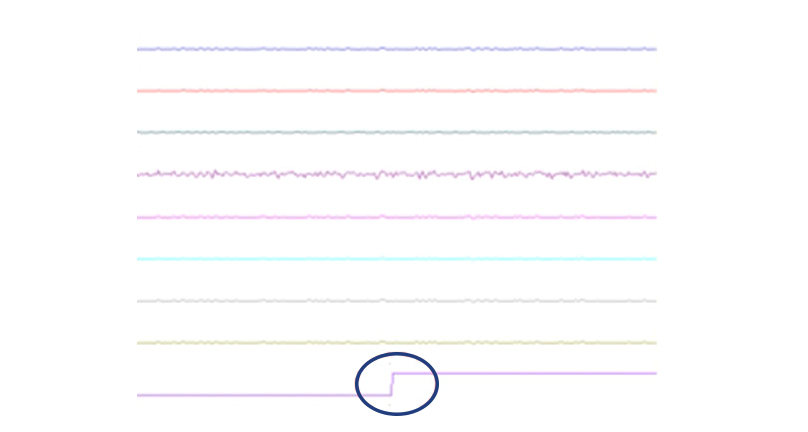

< 근전도 측정데이타에서 외부 트리거 TTL 신호가 들어온 시점 >
외부트리거 스펙
1.Output - The Output (TTL, LED) meets the following specifications:
(1) TTL output A. Number of TTL output : 2
B. Output level : +5V
C. On-Time : 8msec ~ 1.5sec
(2) LED output A. Number of LED output : 2
B. Output level : + 9V
C. On-Time : 8msec ~ 1.5sec
2. Signal Input
SYNCRA has one signal input. And the type of Signal Input Switch is Push-On.
3. On-Time Controller
SYNCRA has a variable On-Time Controller which sets the on-time of outputs.
- Range of variability : 8msec ~ 1.5sec
4. Environmental
The SYNCRA is designed to operate in a controlled temperature and humidity environment with the following limitations:
- Temperature Range: 20-40C
- Relative Humidity: less than 80%, non-condensing
5. Power Requirements
The SYNCRA will draw the following AC voltages and currents from Common power supply or DC battery. ( Power On/Off by manual power switch ).
- 220V @ 30mA-Common power supply
- 9V @ 30mA-DC battery
외부트리거 기본구성품
사진 품명 모델 개요
제품 본체 (정면) Syn-main 트리거, LED port 및 시간조절 스위치 포함
제품 본체 (후면) CD-TS-2.2 입력단자와 파워스위치가 포함
LED Stand Syn-LED Input switch click 과 동시에 램프가 깜빡임. 촬영된 영상에서 시간확인 (2 Set 제공)
Input Switch Syn-input-c 본체와 연결하여, 입력신호를 인가하는 케이블8EA), Single Pole Electrode Lead(1EA)
